The harbor and telemetry

Preview

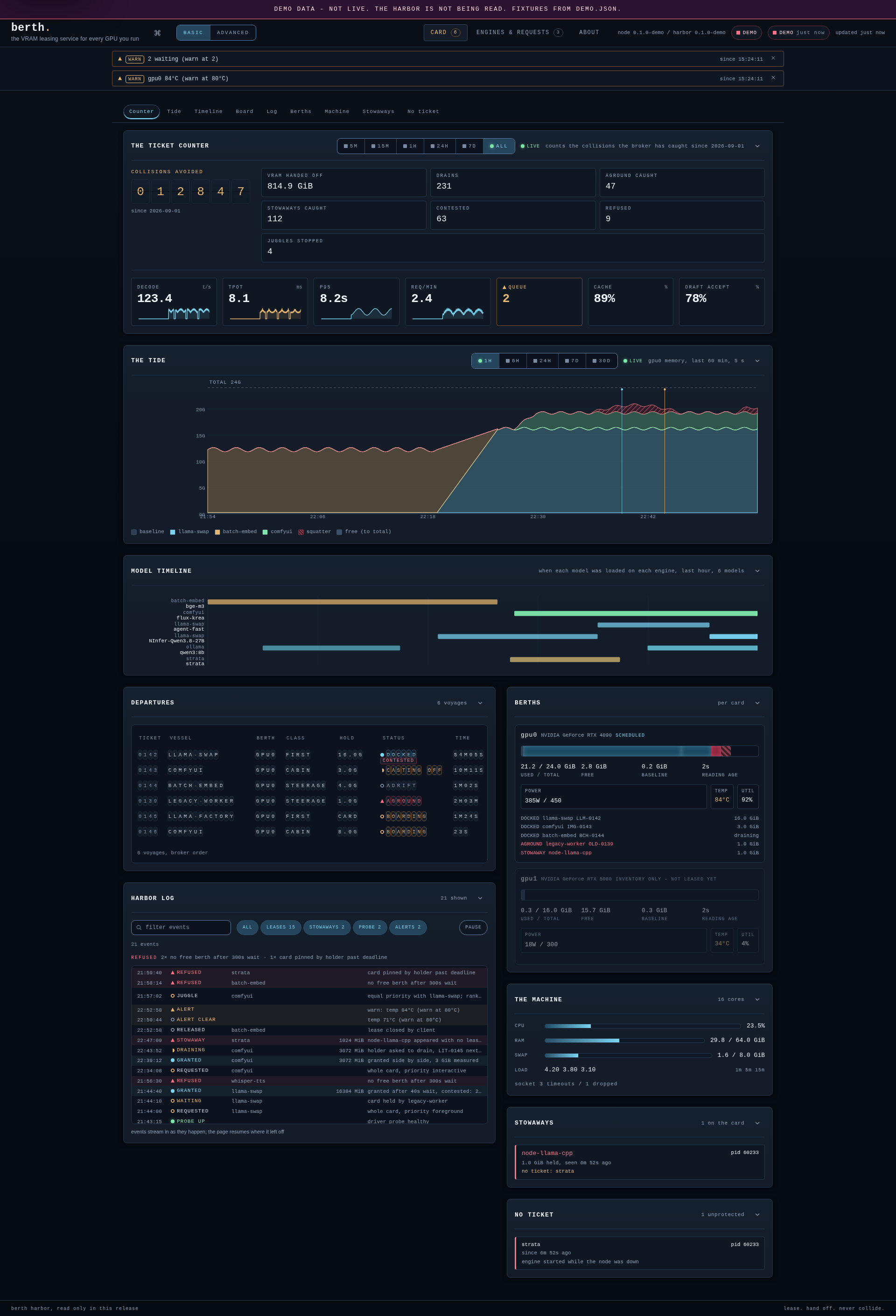

The harbor UI (basic mode, served from the built-in demo fixture - every number on the screen comes from demo.json). The tide shows the card's memory by holder over six hours; the hatched stretch is a stowaway the fixture replays: a model that ran without a lease after a daemon restart, reported and left alone.

The Engines tab (advanced mode): the engine cards with their learned footprints as EST. VRAM, the library (shelf, quant, size, the cached tier, the serving engine), decode throughput, the token ledger, the per-model leaderboard, storage and residency.

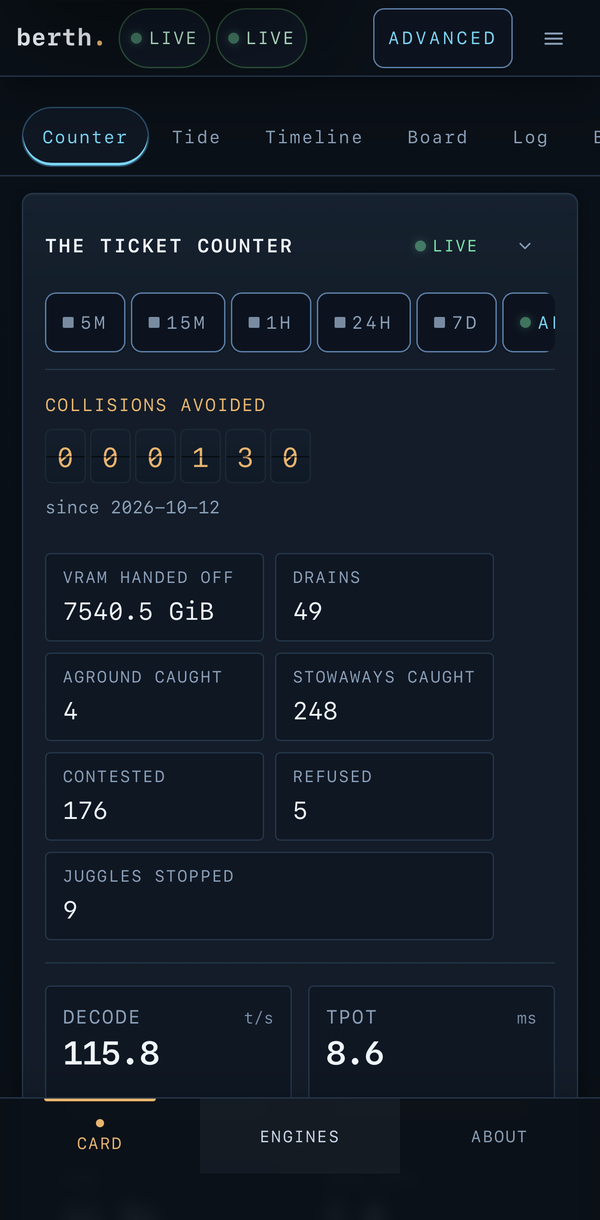

On a phone, the harbor fits the screen: the tabs move to a bar at the bottom and the panels stack. This is the CARD tab on an iPhone, read from a live node on the reference workstation.

The harbor on your iPhone's Home Screen

The harbor listens on loopback, so first give your phone a way to reach it. On a tailnet, publish it from the Berth machine and pass the name it serves under to the harbor:

tailscale serve --bg --https=443 http://127.0.0.1:9798
berth harbor --allow-host <machine>.<tailnet>.ts.net

Then, on the iPhone:

1. Open https://<machine>.<tailnet>.ts.net/ in Safari.
2. Tap Share, then Add to Home Screen.
3. Name it (berth works) and tap Add.

The Home Screen icon is Pilot, the harbor master llama, and the name under it is berth. The page stays read-only. The harbor has no login, so publish it only on a tailnet or a home network you trust.

Visibility

• Stowaways: every process holding VRAM without a lease, with memory, identity and first-seen time; optional desktop notification and webhook. Report-only by design.
• Contested grants: a grant made while stowaways hold memory is flagged, not hidden.
• Event log: every request, wait, drain, release, free, stuck lease, stowaway and probe change, with gap-free sequence numbers; berth events -f follows it live.
• The collisions board: collisions avoided, VRAM handed off, drains, stuck releases caught, stowaways caught, contested grants, refusals. Each count links back to a recorded event. berthd keeps the board in ~/.local/state/berth/counters.json (--counters), so a restart or a reboot carries the counts on. The harbor stores a reading a minute and its ticket counter shows the last 5 min, 15 min, hour, 24 h or 7 days next to the all-time board (GET /v1/counters?range=5m|15m|1h|24h|7d).
• The engines' estimated VRAM: a run measures how much VRAM its leases held at their peak, and the broker keeps the last figure per engine in ~/.local/state/berth/footprint.json (--footprint), across restarts. berth status shows it as EST. VRAM beside the engine's own figures, and the JSON names it estimated_vram_bytes. It is an estimate of what a run needs, never a reservation: a run that holds far more than the learned figure (1.5x, once the engine has three runs) logs an engine.footprint event, so a grown engine is seen instead of mis-sized.
• The queue in every wait reason: every reason a waiter is sent starts with its place in the queue, "next in line" or "2nd in line (behind interactive comfyui)", so a client behind the head of the queue hears where it stands instead of silence. The waiting table of berth status shows the same place beside a start estimate, in seconds after the card frees: the measured starts in the waiter's chain, one per seat ahead plus its own. An unmeasured start says unmeasured and adds no number, and the holder's drain is never in the figure, because a request runs as long as it runs.
• A card passed through to a VM (experimental). When the governed card is bound to vfio-pci, berth status shows "passed through to a VM (vfio-pci)" in place of its memory figures, and the JSON has a passthrough object with the state and the bound driver. The state reads detaching while a switch is under way. card.passthrough and card.returned mark each change once in the event log. While a VFIO hold is granted (berth vfio run), berthd does not open the card, because its own probe would block the driver switch; it reads the driver from sysfs instead. Nothing new is granted while the card is away, and each waiter's reason says so ("gpu0 is passed through to a VM (vfio-pci); it comes back when the VM's hold ends"). A card switched by hand, with no hold, shows the same state instead of a probe-failed warning.
• Alerts: one threshold table in berth.toml ([alerts]): warn and crit per key (queue, ttft, tpot, p95, cache, reingest, vram, temp, power, kv). The node evaluates it on its 5 s sample cycle, fires a desktop notification and webhook on entering a level, and logs alert.raised / alert.cleared events (berth events -f, the harbor log); a level stays until the value stays clear for clear_polls samples (default 3). GPU probe failure and aground leases are built-in danger alerts, always on. Default posture: no [alerts] table means no KPI alerts, and the notification channels are separately opt-in (--notify, --webhook). The harbor colors the same state the node notifies on: KPI tiles and GPU cells, a strip of the currently-breaching keys, and an overall LIVE / DEGRADED / OFFLINE state beside the connection pill.

The harbor's views

Everything the node collects shows in one of three tabs, and every panel answers a question an operator actually asks.

The CARD tab. - The ticket counter answers "has anything collided?" with the collisions-avoided odometer, the seven collision tiles and the request KPIs, over the all-time board or a stored window. - The tide answers "who holds the card, and when?" with card memory by holder and the lease events overlaid, over a 1H / 6H / 24H / 7D / 30D picker. - The model timeline answers "when was each model loaded on each engine?" - The departures board answers "what is on the card right now?" with one row per lease: the ticket number, the engine, the class, the hold (measured once docked, asked-for while boarding, the parked engine's RAM copy while WARM), the state word, and the age. A WARM flag marks a parked engine; PARKING is the transitional state while the weights move to RAM. A boarding row carries a Q flag with its queue position and the node's completion estimate when the node sends them. Clicking a row opens the lease's ticket: the tier the weights live in (HOT on the card, WARM in RAM), the queue rows, the container a run is in, and the exact terminal order for the lease beside it as a copy button (berth stop ENGINE, berth resume ENGINE, berth reclaim LEASE). - The berths, the machine, stowaways and no ticket answer "what else is on the card and the host, and who holds memory without a ticket?"

The ENGINES tab. - The engine cards answer "is this engine up and serving?" with the state the engine reports, its loaded models, decode and prefill rates, and its learned footprint as EST. VRAM: what its past runs measured, never "reserved". - The library answers "is this model warm?" with every model in the configured roots, each row showing shelf, quant, size, the CACHED share with its tier (COOL or COLD), the engine serving it when one reports it resident, that engine's EST. VRAM, and copy buttons for berth prefetch NAME and berth models show NAME. The listing is read-only here; the terminal does the acting. - Card ranking, the KV pool, throughput, the token ledger, the leaderboard, the recent requests and context residency answer the questions behind the request log, and the storage panel (advanced) says what the harbor's own store keeps.

The ABOUT tab is this page's own documentation: the modes, the shortcut keys, and what every state word and figure means.

Telemetry (built in, no other tool needed)

• GPU: memory, utilisation, temperature, power against its limit, fan, SM and memory clocks, PCIe link, for every card in the machine with its real limits.
• Host: CPU, RAM, swap, load.
• Engines: every engine in the table above, found on its default port or configured on any other. Loaded models, decode and prefill tok/s, token totals, queue, draft acceptance, the context window per model (llama.cpp/NInfer /props, Strata /health, llama-swap per model proxy), and the live KV slot pool (/slots: per-slot context tokens against the window). An engine without those endpoints degrades to "no window / no slot data", never an error. An engine that was up and stops answering is shown as unresponsive (latched), distinct from one that never ran.
• Requests: a 24-hour request log from llama-swap; requests per minute, p50 and p95 latency, prefill time, time per output token, cache and re-ingest share, a token ledger (1 h, 24 h, since start), a per-model leaderboard, and the most recent requests.
• History: the node keeps the last hour at 5-second resolution in memory. The harbor stores it on disk (SQLite, no C toolchain needed): 1-minute rows for 30 days, per engine the KV pressure (peak slot fill against the window) and the resident models' windows, hourly rows for 400 days, and the request log for 30 days, de-duplicated by request id. Databases written before the KV column is added are migrated in place on the first open; nothing is ever rewritten.
• Model timeline: when each model was loaded and unloaded on each engine, kept across restarts. A gap in the readings over 3 minutes is never drawn as loaded.
• The UI labels engine-reported figures as the engine's own, apart from what the driver measures.
